Brackets

Air-Conditioning Support Kits

Aplicação

The Sikla Air-Conditioning Support Kits are designed for the rapid assembly and installation of wall-mounted supports for air-conditioning units, ventilators, split systems or similar loads.
Each kit is supplied in a box containing all the necessary parts, with the exception of anchors - max. diameter 10 mm - to be determined according to the nature of the mounting wall structure and to be ordered separately. Versions of the kits are available with or without vertical channel sections and sound-absorbers, and are offered in both standard electro-galvanised and epoxy finish.
Precise height and depth adjustments can be easily made during installation. The serrated inner edges of the Channels 41/41 and Cantilever Brackets combined with the Channel Nuts NT 41 or HZ 41 ensure a totally secure installation with no risk of slipping or displacement of the support under loading or due to machine vibrations.

Configuração

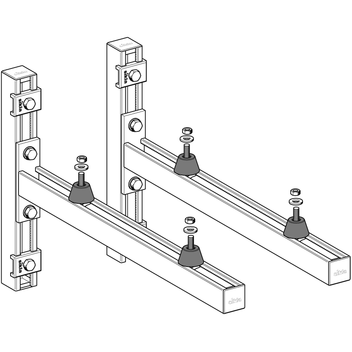

Kits supp 570/ 570 E and 445/ 445 E:

  • 2 Vertical channel sections 41/41/2.5 (L. 500 mm) with End Caps
  • 2 Cantilever Brackets Pressix CC 41/41/2.5 (with exclusive CC 41 fast-mount system) and End Caps
  • 4 Sound-absorbers CC M8 (with exclusive CC 41 fast-mount system)
  • 1 Plastic bag containing 4 holding brackets for M10 anchor fixings, and 4 M8 washers and nuts for mounting the air-conditioning unit on the sound absorbers.

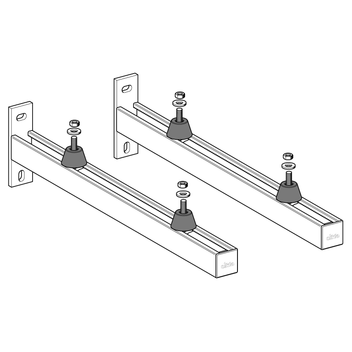

Kits clim 570 i/ 570 iE and 445 i/ 445 iE:

  • 2 Cantilever Brackets 41/41/2.5 with mounted End Caps
  • 4 Sound-absorbers CC M8 (with exclusive CC 41 fast-mount system)
  • 1 Plastic bag containing 4 holding brackets for M10 anchor fixings, and 4 M8 washers and nuts for mounting the air-conditioning unit on the sound absorbers

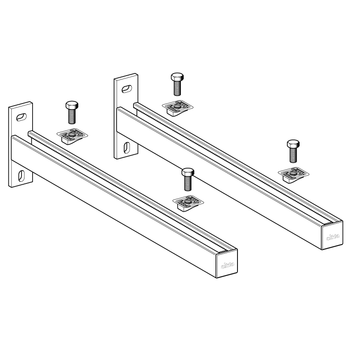

Kits clim 570/ 570 E and 445/ 445 E:

  • 2 Cantilever Brackets 41/41/2.5 with mounted End Caps
  • 1 Plastic bag containing 4 M8 speed nuts and 4 M8 x 30 bolts for mounting the air-conditioning unit.

Add-on options:

  • Sound Absorption Kit containing 4 M8 absorbers, 8 M8 washers and nuts
  • Wall Fixation Kit including 4 M10 Holding Brackets, 4 M10 Drive Plugs (for concrete) and 4 M10 x 40 bolts.

Dados Técnicos

Type
Max. weight of unit
to be installed [kN]
Kits 570/ 570 E/ 445/ 445 E
1.0
Kits 570/ 570 E/ 445/ 445 E/ 570 i/ 570 iE/ 445 i/ 445 iE
1.0

Sound absorbers Type M8:
Natural rubber
Temperature range:
-30°C up to +70°C
Sound absorption value:
≥ 15 dB(A)

Material:

All metal parts:
Steel, electro-galvanised
Expoxy versions (Channels and Cantilevers):
Epoxy, RAL 9010
End caps:
HDPE, yellow
TypLänge
[mm]
LängeVerpackung
[Stück]
Artikel-
Nr.
Support Kit 5705705001 192018
Support Kit 570E5705001 192019
Support Kit 4454455001 192027
Support Kit 445E4455001 192028
Support Kit clim 570570-1 192020
Support Kit clim 570E570-1 192021
Support Kit clim 445445-1 192029
Support Kit clim 445E445-1 192030
Support Kit clim 570i 570-1 192022
Support Kit clim 570iE 570-1 192023
Support Kit clim 445i445-1 192031
Support Kit clim 445iE 445-1 192032
Wall Fixation Kit 40--1 set 192034
